SMD Cheatsheet

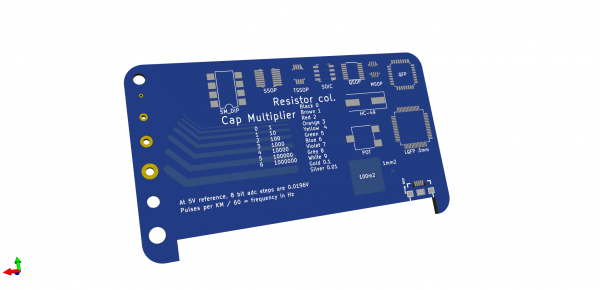

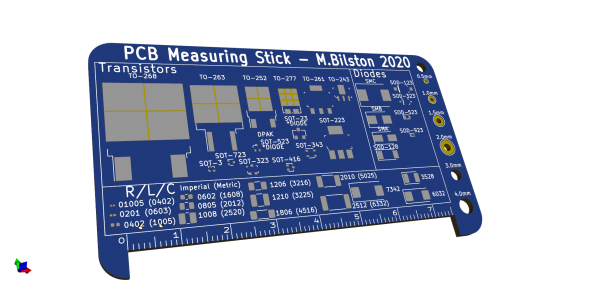

I designed this up as a little tool to assist me in PCB manufacture. All the common parts I use, plus a few little reminders are on here.

Feel free to download the Gerber files and get your own printed: footprint-sheet.zip
